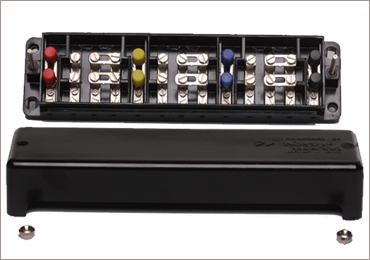

Test Terminal Blocks


Facilitate easy testing
Rugged construction
High electrical strength
Extended top cover-optional

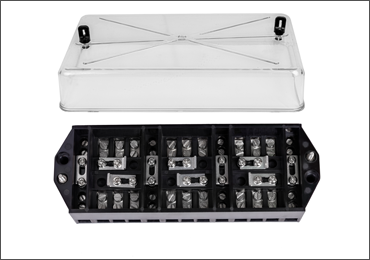

Transparent top cover-optional
----------------------------------------------------------------------------------------------

Housing & Top Cover
:
Phenolic moulding,Black
Terminals, screws & links
:
Brass, Nickel plated
Rated voltage
:
600 V max.
Rated current
:
20 A max.

Also available in series - NW & Series - SS

TYPES   ORDERING CODE
3-Phase, 4-wire screw type front connection NW/20-34SFC
3-Phase, 4-wire screw type back connection NW/20-34SBC
3-Phase, 4-wire link type front connection NW/20-34LFC
3-Phase, 4-wire link type back connection NW/20-34LBC
3-Phase, 3-wire screw type front connection NW/20-33SFC
3-Phase, 3-wire screw type back connection NW/20-33SBC
3-Phase, 3-wire link type front connection NW/20-33LFC
3-Phase, 3-wire link type back connection NW/20-33LBC

For TTBs With transparent cover, Suffix - TC to the above code. eg. +
+ Screw type front connection with transparent cover. code : NW/20-34SFC-TC.


OTHER PRODUCTS

Relay Test Blocks & Test Plugs
Relay Test Systems
Semaphore Indicators
Terminal Blocks, Connectors

OTHER PRODUCTS

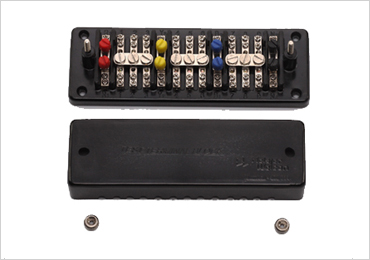

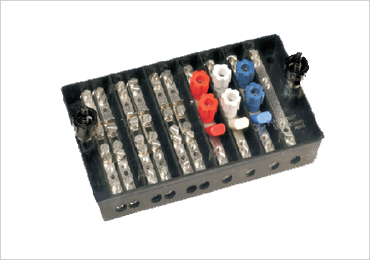

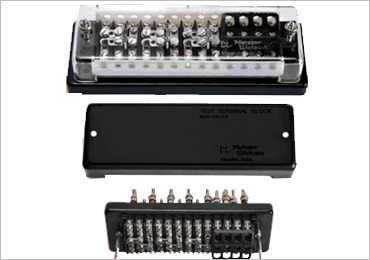

Series - NW Series - SS Series - NW-13W Series - NWKB
